05 April 2016


Banyak pertanyaan di forum-forum programming tentang bagaimana mendapatkan serial number hardisk yang bawaan dari pabriknya. Tapi bukan yang serial number volume yah, karena serial volume akan berubah2 saat proses format. Kebanyakan code yang Rani temukan menggunakan WMI, tapi serial number yang dihasilkan tak sesuai harapan.

Rani pengennya serial number yang sama yang biasanya dihasilkan oleh code HDSN seperti yang di link Planet Source Code, dan code ini sebelumnya Rani pakai di aplikasi-aplikasi yang menggunakan Visual Basic 6 (VB6). Dan sekarang saat migrasi aplikasi ke VB.NET Rani butuh code yang sama, sayangnya klo menggunakan WMI hasilnya ga sama. Berarti harus cari cara selain menggunakan WMI, ada ga ya?

Akhirnya dapet solusi terbaik dengan menggunakan DeviceIOControl yang diperoleh dari blog jo0ls' .Net stuff. Kemudian Rani adaptasi sesuai kebutuhan.

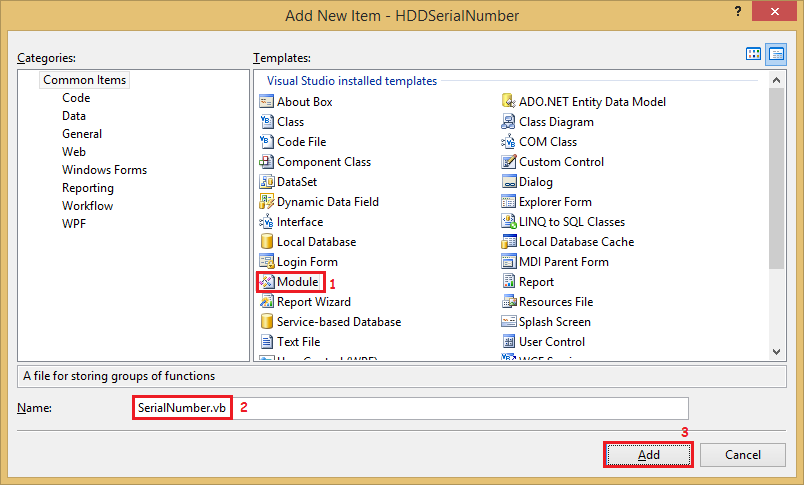

Caranya setelah membuat project/solution windows form bernama HDDSerial Number, tambahkan sebuah module bernama SerialNumber.vb
Kemudian tambahkan code sebagai berikut:
Imports System.Runtime.InteropServicesImports Microsoft.Win32.SafeHandlesImports System.SecurityImports System.ComponentModelImports System.Text

Module SerialNumber

  <SuppressUnmanagedCodeSecurity()> _
  Private Class NativeMethods
      <DllImport("kernel32", SetLastError:=True)> _
      Public Shared Function CreateFile( _
       ByVal FileName As String, _

ByVal DesiredAccess As Integer, _

ByVal ShareMode As Integer, _

ByVal SecurityAttributes As IntPtr, _

ByVal CreationDisposition As Integer, _

ByVal FlagsAndAttributes As Integer, _

ByVal hTemplateFile As IntPtr) As SafeFileHandle
      End Function

      <DllImport("kernel32.dll", SetLastError:=True)> _
      Friend Shared Function DeviceIoControl( _

ByVal deviceHandle As SafeFileHandle, _
          ByVal controlCode As Integer, _
          ByRef inBuffer As ATA_PASS_THROUGH_EX_WITH_BUFFERS, _
          ByVal inBufferSize As Integer, _
          ByRef outBuffer As ATA_PASS_THROUGH_EX_WITH_BUFFERS, _
          ByVal outBufferSize As Integer, _
          ByRef bytesReturned As Integer, _
          ByVal overlapped1 As IntPtr) As Boolean
      End Function

  End Class


  <StructLayout(LayoutKind.Sequential)> _
  Private Structure ATA_PASS_THROUGH_EX
      Public Length As Short

Public AtaFlags As Short

Public PathId As Byte

Public TargetId As Byte

Public Lun As Byte

Public ReservedAsUchar As Byte

Public DataTransferLength As Integer

Public TimeOutValue As Integer

Public ReservedAsUlong As Integer

Public DataBufferOffset As IntPtr
      <MarshalAs(UnmanagedType.ByValArray, sizeconst:=8)> _

Public PreviousTaskFile() As Byte
      <MarshalAs(UnmanagedType.ByValArray, sizeconst:=8)> _

Public CurrentTaskFile() As Byte
  End Structure

  <StructLayout(LayoutKind.Sequential)> _
  Private Structure ATA_PASS_THROUGH_EX_WITH_BUFFERS
      Public Apt As ATA_PASS_THROUGH_EX
      <MarshalAs(UnmanagedType.ByValArray, sizeconst:=512)> _
      Public Data() As Byte
  End Structure

  Public Enum HDINFO
      HD_MODEL_NUMBER = 0
      HD_SERIAL_NUMBER = 1
      HD_FIRMWARE_REVISION = 2
  End Enum

  Public Function HDDInfo(ByVal InfoType As HDINFO) As String
      Dim letter As Char = "c"
      Const GenericRead As Integer = &H80000000

Const GenericWrite As Integer = &H40000000

Const FileShareRead As Integer = 1

Const FileShareWrite As Integer = 2

Const OpenExisting As Integer = 3
      Dim drivePath As String = String.Concat("\\.\" & letter & ":")
      Using driveHandle As SafeFileHandle = NativeMethods.CreateFile( _
       drivePath, _
       GenericRead Or GenericWrite, _
       FileShareRead Or FileShareWrite, _
       IntPtr.Zero, _
       OpenExisting, _
       0, _
       IntPtr.Zero)
          If driveHandle.IsInvalid Then
             Return "CreateFile ERROR: " & (New Win32Exception).Message
          End If
          Dim apex As New ATA_PASS_THROUGH_EX
          apex.Length = Marshal.SizeOf(apex)

          ' ATA_FLAGS_DATA_IN
          apex.AtaFlags = 2

          ' The command returns a 512 byte package of info.
          apex.DataTransferLength = 512

          apex.TimeOutValue = 10 ' 10 second timeout.
          apex.DataBufferOffset = Marshal.OffsetOf( _
                    GetType(ATA_PASS_THROUGH_EX_WITH_BUFFERS), "Data")
          ' This contains the command we are requesting.
          apex.CurrentTaskFile = New Byte(7) {}
          'the command "IDENTIFY DEVICE"
          apex.CurrentTaskFile(6) = &HEC
          Dim apexb As New ATA_PASS_THROUGH_EX_WITH_BUFFERS
          apexb.Apt = apex
          Dim inBufferSize As Integer = Marshal.SizeOf( _
                   GetType(ATA_PASS_THROUGH_EX_WITH_BUFFERS))
          Dim bytesReturned As Integer
          Const IOCTL_ATA_PASS_THROUGH As Integer = &H4D02C
          Dim result As Boolean = NativeMethods.DeviceIoControl( _
                                  driveHandle, IOCTL_ATA_PASS_THROUGH, _
                                  apexb, inBufferSize, apexb, inBufferSize, _
                                  bytesReturned, IntPtr.Zero)
          If result = False Then
              Return "DeviceIOControl ERROR: " & (New Win32Exception).Message
          End If

          Select
Case InfoType

Case HDINFO.HD_SERIAL_NUMBER

Return GetString(apexb.Data, 20, 20)

Case HDINFO.HD_FIRMWARE_REVISION

Return GetString(apexb.Data, 46, 8)

Case HDINFO.HD_MODEL_NUMBER
                  Return GetString(apexb.Data, 54, 40)
              Case Else
                  Return Nothing

          End Select
      End Using
  End Function


  Private Function GetString(ByVal bytes() As Byte, _

ByVal offset As Integer, _

ByVal length As Integer) As String
      ' The strings are slightly weird - endianness?
      ' If you use ASCII.GetBytes Then Each character
      ' pair is reversed.

      Dim sb As New StringBuilder()
      For i As Integer = offset To offset + length - 1 Step 2
          sb.Append(Chr(bytes(i + 1)))
          sb.Append(Chr(bytes(i)))
      Next
      Return
RTrim(LTrim(sb.ToString))
  End Function

End Module


Atur UI pada Form1 supaya property text menjadi "Hardisk Serial Number", tambahkan 3 label dan 3 TextBox. Berinama textbox-textbox tersebut dengan txtSerialNumber, txtModel, dan txtFirmware.
Kemudian ketikan kode berikut:
Imports System.Management

Public Class Form1
    Private Sub Form1_Load(ByVal sender As Object, _

          ByVal e As EventArgs) Handles MyBase.Load

        Try

            txtSerialNumber.Text = HDDInfo(HDINFO.HD_SERIAL_NUMBER)
            txtModel.Text = HDDInfo(HDINFO.HD_MODEL_NUMBER)
            txtFirmware.Text = HDDInfo(HDINFO.HD_FIRMWARE_REVISION)

        Catch ex As Exception
            MsgBox(ex.Message)
        End Try

    End Sub
End Class

Jalankan, dan ini penampakan hasil di PC Rani:

Catatan: Jangan lupa untuk Run as Administrator supaya aplikasi dapat berjalan baik pada Vista, Windows 7, dan Windows 8.

Referensi:
http://stackoverflow.com/questions/782053/get-hdd-and-not-volume-serial-number-on-vista-ultimate-64-bit
http://jo0ls-dotnet-stuff.blogspot.co.id/2011/02/getting-hard-disk-drive-info-with.html
