Hi guys, this time I'm gonna show you how to display form as tabs just like on chrome or firefox.
A sample below, I have a project named TabUIFormat. Form1 is automatically generated.
We'll add an MDI Parent form named frmMain. Click on the project node in Solution Explorer then choose Add -> Windows Form...
So here is the menus I need to call Form 1, Form 2, and Form 3.
Because we generated the MDI Parent from template so the code behind is also automatically generated.
Let's remove all because we don't need it. The result is as below.
We've already have frmMain and Form1, add 2 more forms, Form2 and Form3 using similar way to add the MDI Parent but this time we choose Windows Form.

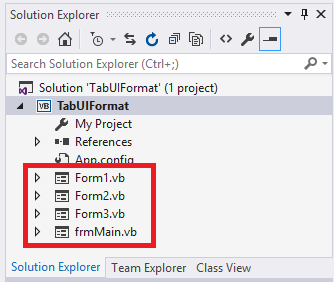

So now we have an MDI Parent form and 3 regular forms:
Set its project property from Project menu -> [Project Name] Properties ....
We'll make frmMain as the initial Form by choosing Application (on the left panel), set Startup Form into frmMain. And Shutdown mode into "When last form closes" so the application will be terminated hen the last form is closed.
Add a TabControl on frmMain and set its position under the menu.

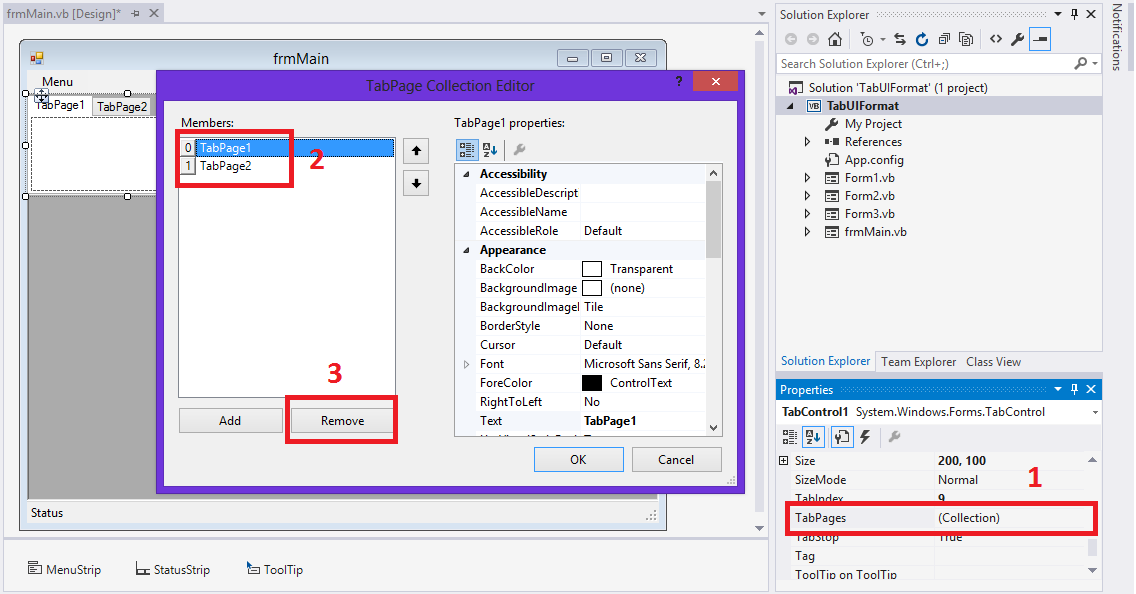

Set TabPages property and remove all existing TabPages.
The result is as below image, fit the width with the MDI form width also set anchor property into Top, Left, Right, so the posision will keep on the top and the width is always fit the MDI form while it's resizing.
Set display UI for Form1, Form2, and Form3 so it's easier for use to see the differences.
And this is code that we have to write on:
Code frmMain.vb
Public Class frmMain
'to hide/show tab
Sub SetTabDisplay()
If Me.ActiveMdiChild Is Nothing Then
TabControl1.Visible = False
Else
TabControl1.Visible = True
End If
End Sub
Private Sub frmMain_Activated(sender As Object, e As EventArgs) _
Handles Me.Activated
SetTabDisplay()
End Sub
Private Sub frmMain_MdiChildActivate(sender As Object, e As EventArgs) _
Handles Me.MdiChildActivate
SetTabDisplay()
End Sub
Private Sub TabControl1_SelectedIndexChanged(sender As Object, _
e As EventArgs) Handles TabControl1.SelectedIndexChanged
If TabControl1.TabPages.Count > 0 Then
TabControl1.Visible = True
Else
TabControl1.Visible = False
End If
If TabControl1.SelectedTab IsNot Nothing Then
For Each frm As Form In Me.MdiChildren
If frm.Name = TabControl1.SelectedTab.Name Then
frm.Show()
frm.Select()
End If
Next
End If
If TabControl1.SelectedTab IsNot Nothing Then
If TabControl1.SelectedTab.Controls.Count > 0 Then
TabControl1.Dock = DockStyle.Fill
Else
TabControl1.Dock = DockStyle.None
End If
End If
End Sub
Public Function isTabExist(ByVal TabCaption As String) As Boolean
Dim bln As Boolean = False
For Each itemTab As TabPage In TabControl1.TabPages
If itemTab.Text = TabCaption Then
bln = True
End If
Next
Return bln
End Function
Function isFormExist(ByVal Caption As String) As Boolean
Dim bln As Boolean = False
For Each frm As Form In Me.MdiChildren
If frm.Text = Caption Then
bln = True
End If
Next
Return bln
End Function
Sub LoadForm(ByVal frm As Form, Optional state As FormWindowState = _
FormWindowState.Maximized)
Try
If isTabExist(frm.Text) = False Then
Dim childTab As TabPage = New TabPage()
childTab.Name = frm.Name
childTab.Text = frm.Text
TabControl1.Dock = DockStyle.None
TabControl1.Height = 25
TabControl1.TabPages.Add(childTab)
TabControl1.SelectTab(childTab)
frm.WindowState = state
frm.MdiParent = Me
frm.Show()
Else
TabControl1_SelectedIndexChanged(Nothing, Nothing)
End If
Catch ex As Exception
MsgBox("LoadForm: " & vbCrLf & ex.Message)
End Try
End Sub
Private Sub Form1ToolStripMenuItem_Click(sender As Object, _
e As EventArgs) Handles Form1ToolStripMenuItem.Click
LoadForm(Form1)
End Sub
Private Sub Form2ToolStripMenuItem_Click(sender As Object, _
e As EventArgs) Handles Form2ToolStripMenuItem.Click
LoadForm(Form2)
End Sub
Private Sub Form3ToolStripMenuItem_Click(sender As Object, _
e As EventArgs) Handles Form3ToolStripMenuItem.Click
LoadForm(Form3)
End Sub
End Class
Code Form1.vb :
Public Class Form1
Private Sub Button1_Click(sender As Object, e As EventArgs) _
Handles Button1.Click
Me.Close()
End Sub
Private Sub Form1_Activated(sender As Object, e As EventArgs) _
Handles Me.Activated
If frmMain.TabControl1.TabPages.ContainsKey(Me.Name) Then
frmMain.TabControl1.SelectTab( _
frmMain.TabControl1.TabPages.IndexOfKey(Me.Name) _
)
End If
End Sub
Private Sub Form1_Disposed(sender As Object, e As EventArgs) _
Handles Me.Disposed
If frmMain.TabControl1.TabPages.ContainsKey(Me.Name) Then
frmMain.TabControl1.TabPages.RemoveByKey(Me.Name)
End If
End Sub
End Class
Code Form2.vb :
Public Class Form2
Private Sub Button1_Click(sender As Object, e As EventArgs) _
Handles Button1.Click
Me.Close()
End Sub
Private Sub Form2_Activated(sender As Object, e As EventArgs) _
Handles Me.Activated
If frmMain.TabControl1.TabPages.ContainsKey(Me.Name) Then
frmMain.TabControl1.SelectTab( _
frmMain.TabControl1.TabPages.IndexOfKey(Me.Name) _
)
End If
End Sub
Private Sub Form2_Disposed(sender As Object, e As EventArgs) _
Handles Me.Disposed
If frmMain.TabControl1.TabPages.ContainsKey(Me.Name) Then
frmMain.TabControl1.TabPages.RemoveByKey(Me.Name)
End If
End Sub
End Class
Code Form3.vb :
Public Class Form3
Private Sub Button1_Click(sender As Object, e As EventArgs) _
Handles Button1.Click
Me.Close()
End Sub
Private Sub Form3_Activated(sender As Object, e As EventArgs) _
Handles Me.Activated
If frmMain.TabControl1.TabPages.ContainsKey(Me.Name) Then
frmMain.TabControl1.SelectTab( _
frmMain.TabControl1.TabPages.IndexOfKey(Me.Name) _
)
End If
End Sub
Private Sub Form3_Disposed(sender As Object, e As EventArgs) _
Handles Me.Disposed
If frmMain.TabControl1.TabPages.ContainsKey(Me.Name) Then
frmMain.TabControl1.TabPages.RemoveByKey(Me.Name)
End If
End Sub
End Class

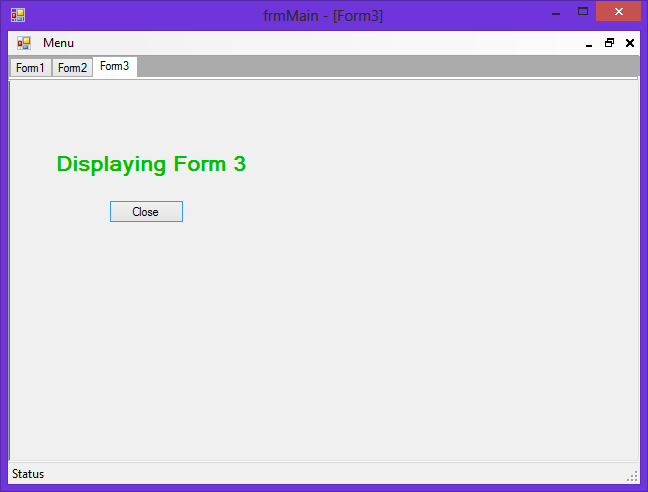

Let's try to debug. When some forms are called it will display as a tab page.
